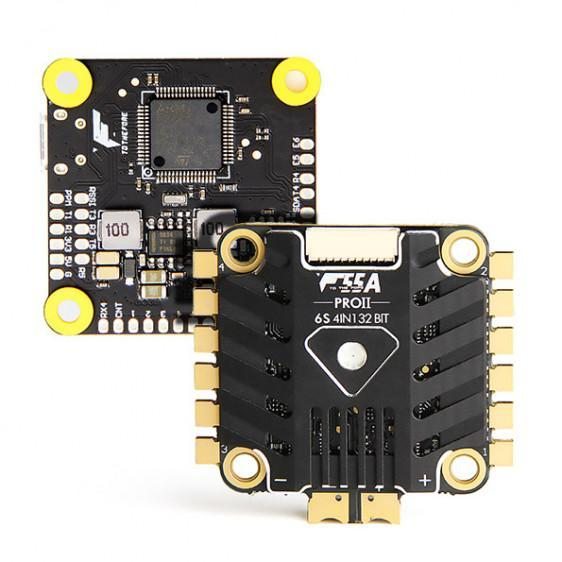

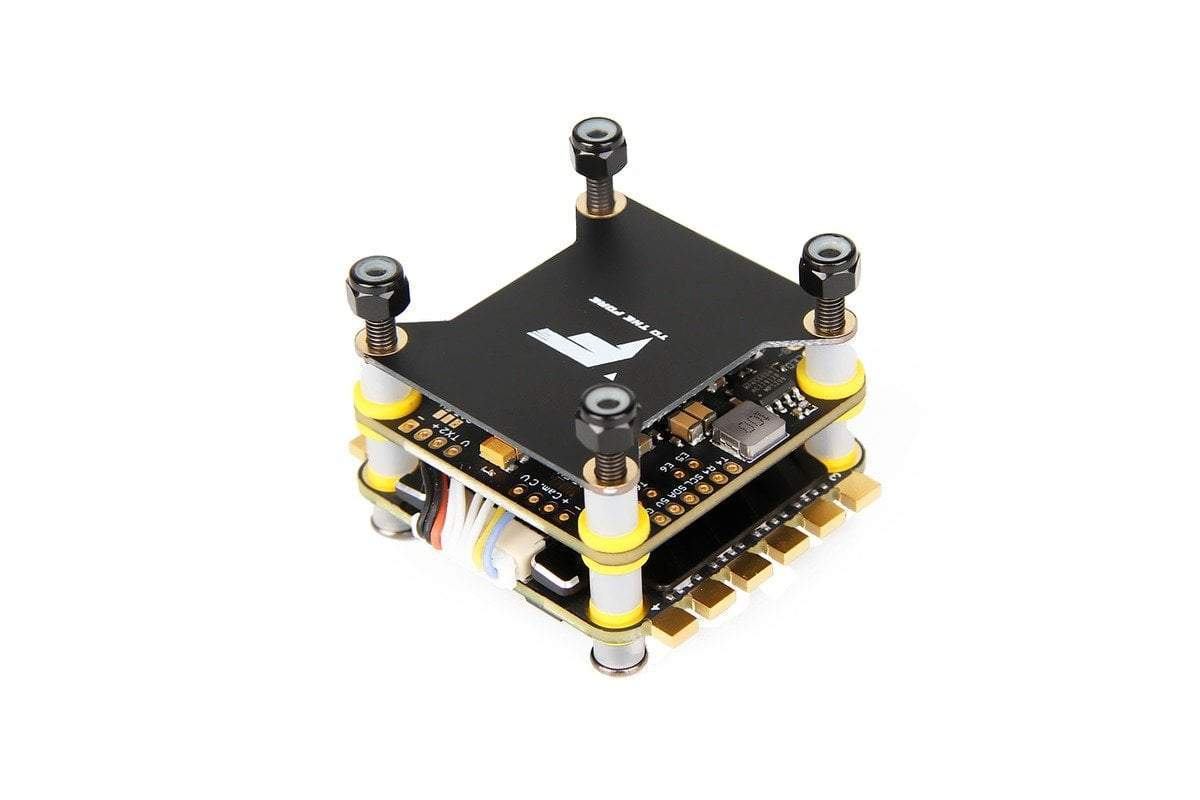

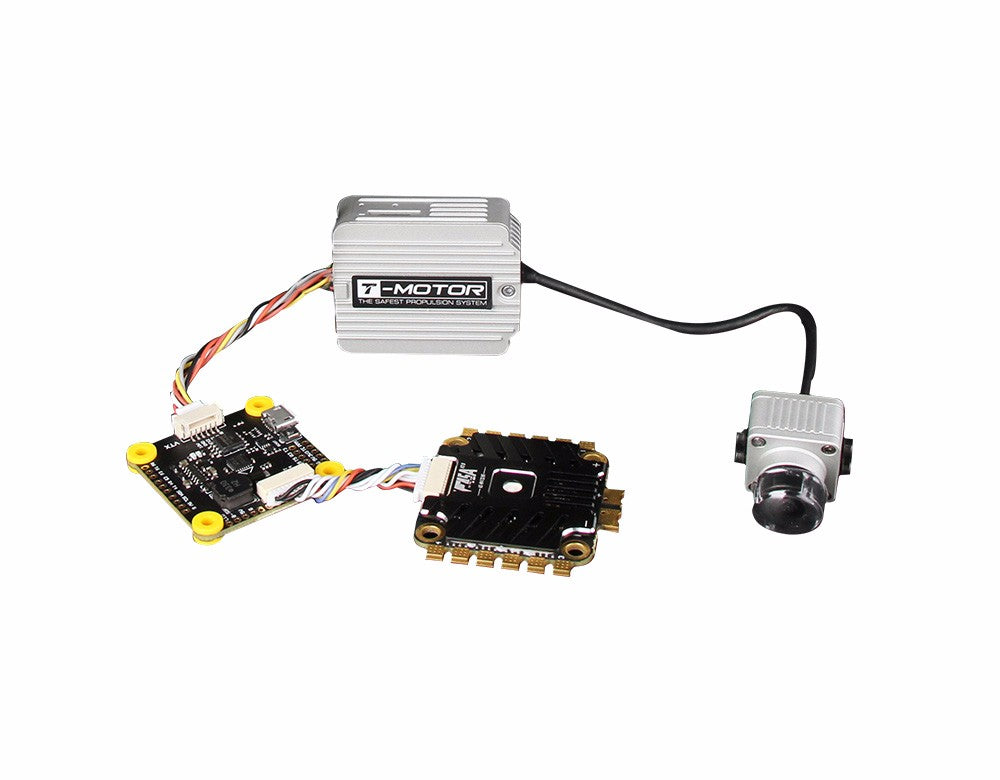

T-Motor F7 HD & F55A Pro II 30x30 Stack-Combo for DJI

Specifications

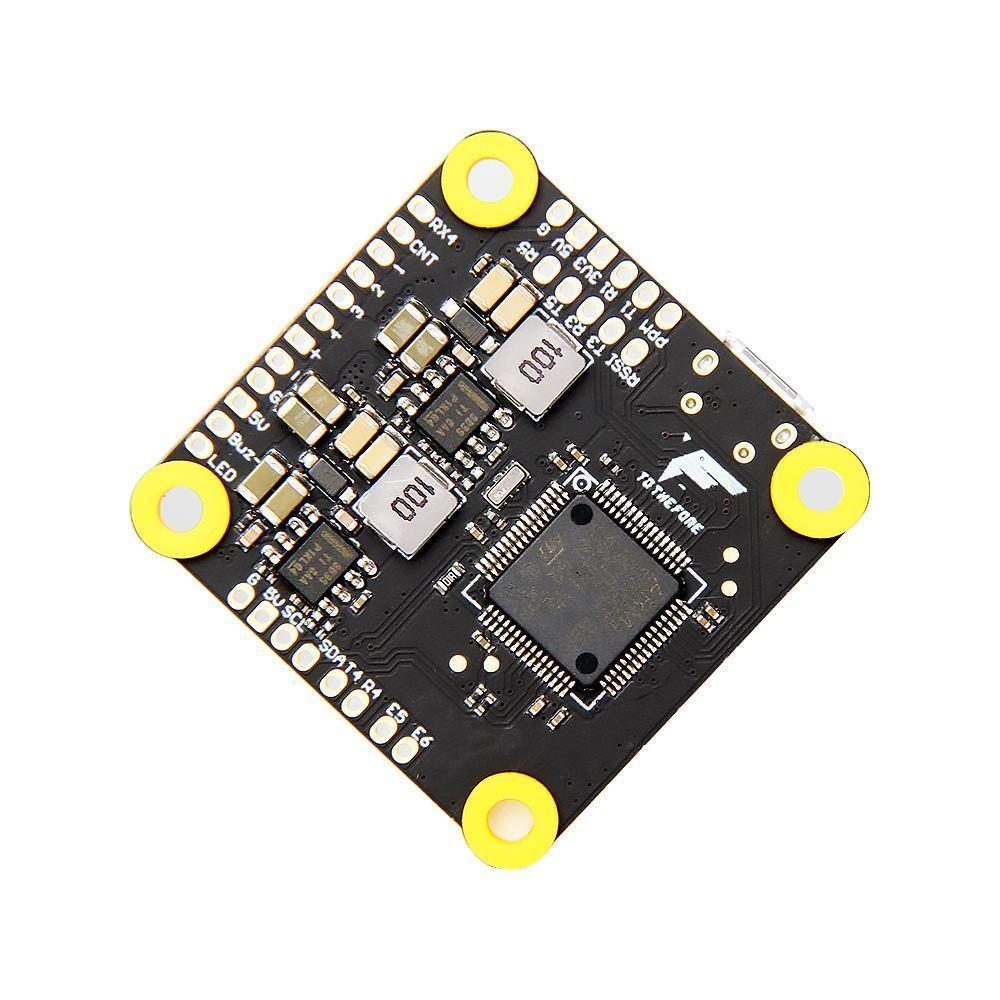

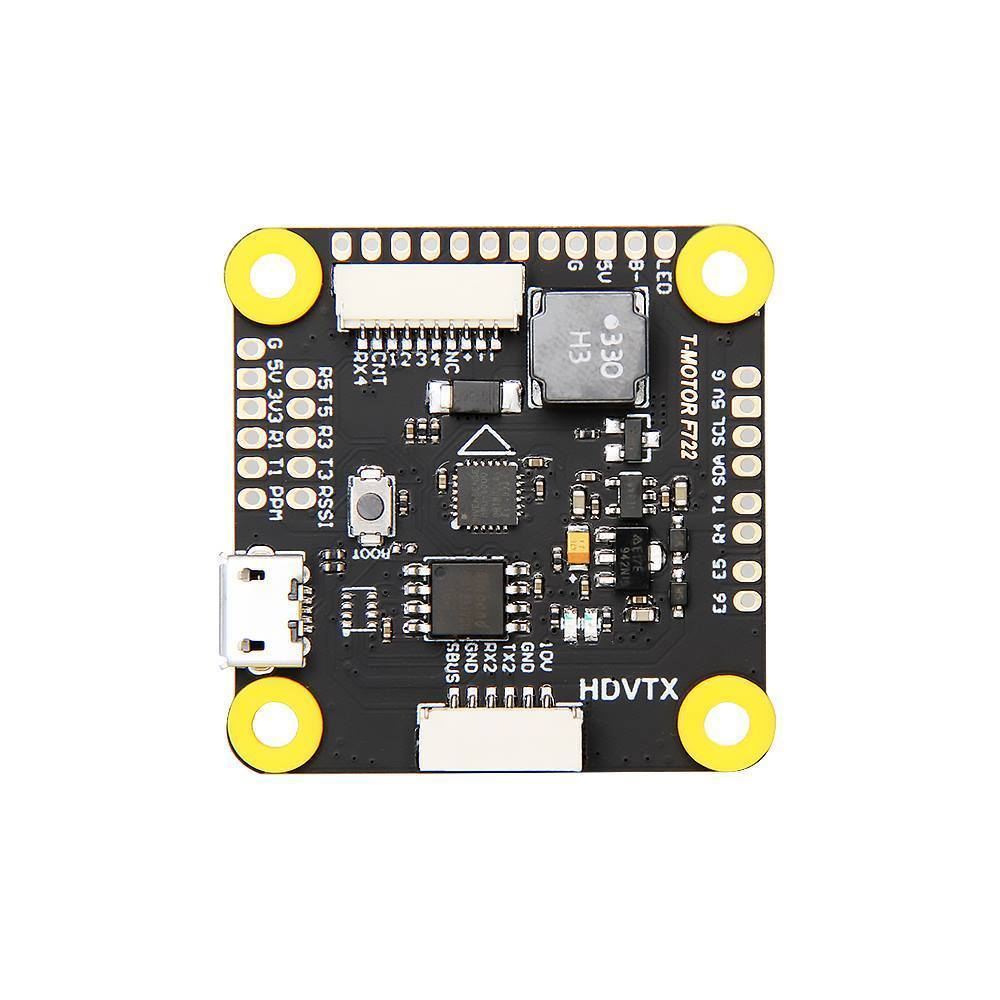

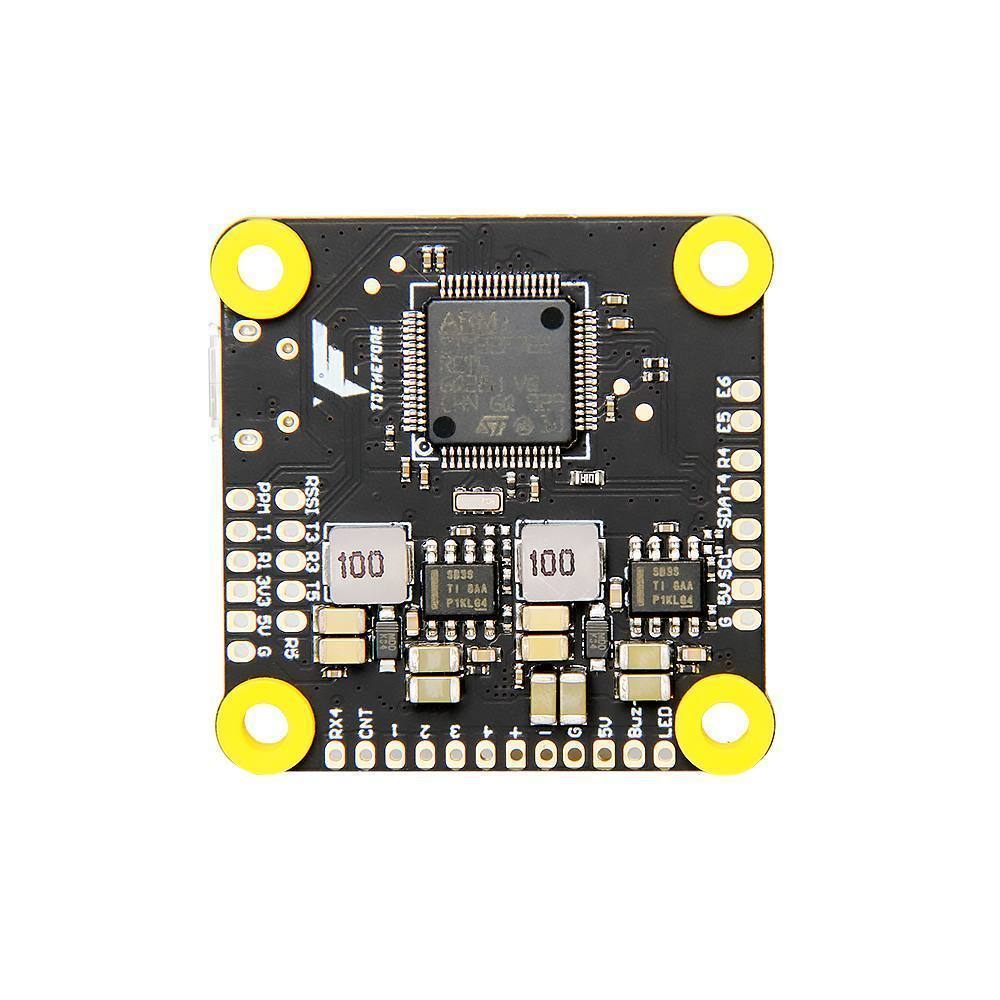

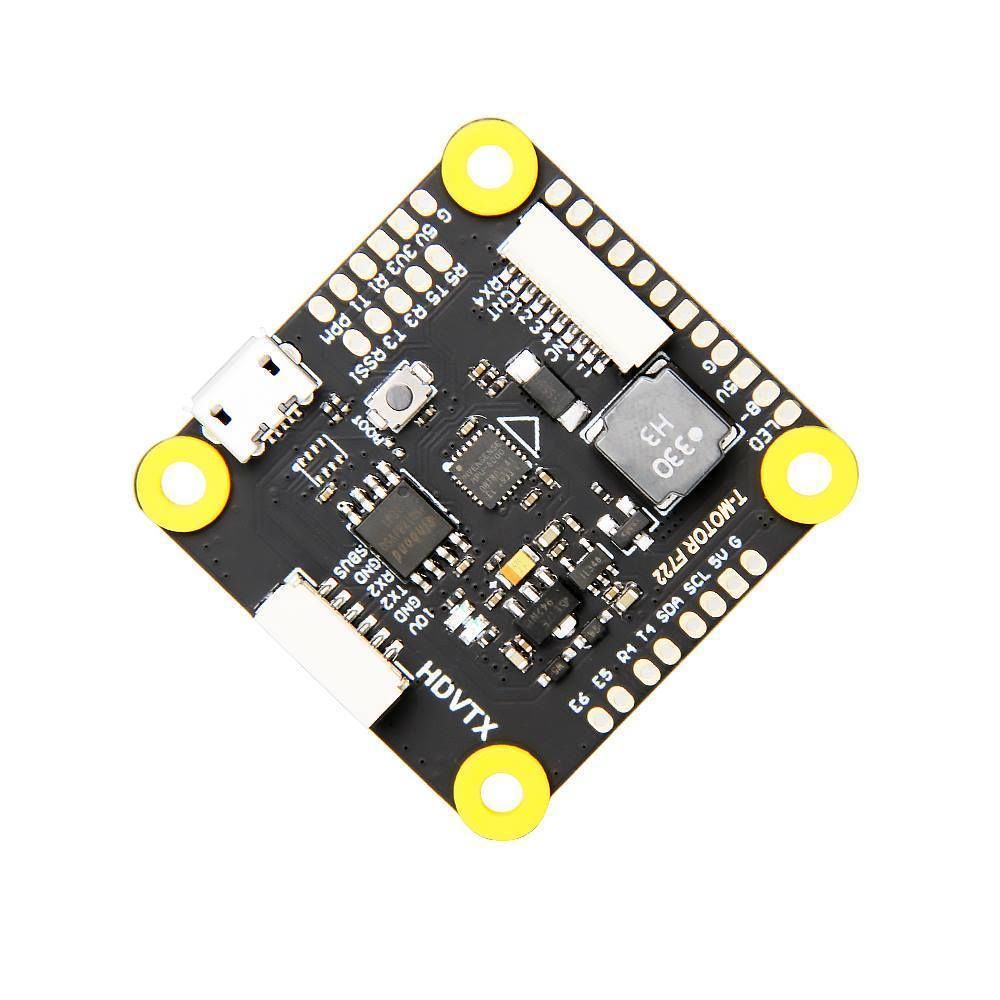

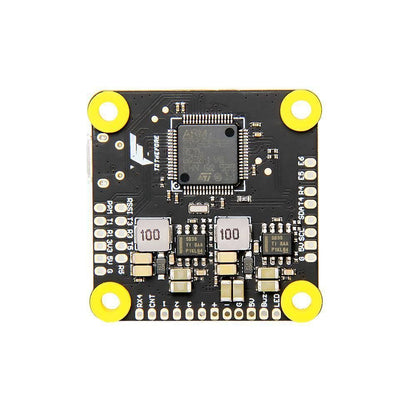

FC

• Input Voltage: 3-6S
• Gyro: BMI270
• Master chip: STM32F722RET6
• Flash: 16MB
• BEC: 5V 2A, 10V 2A
• Mounting hole: 30.5x30.5mm
• Weight: 8.4g
• Size: 37x37mm
• Firmware: TMOTOR F7(Betaflight)

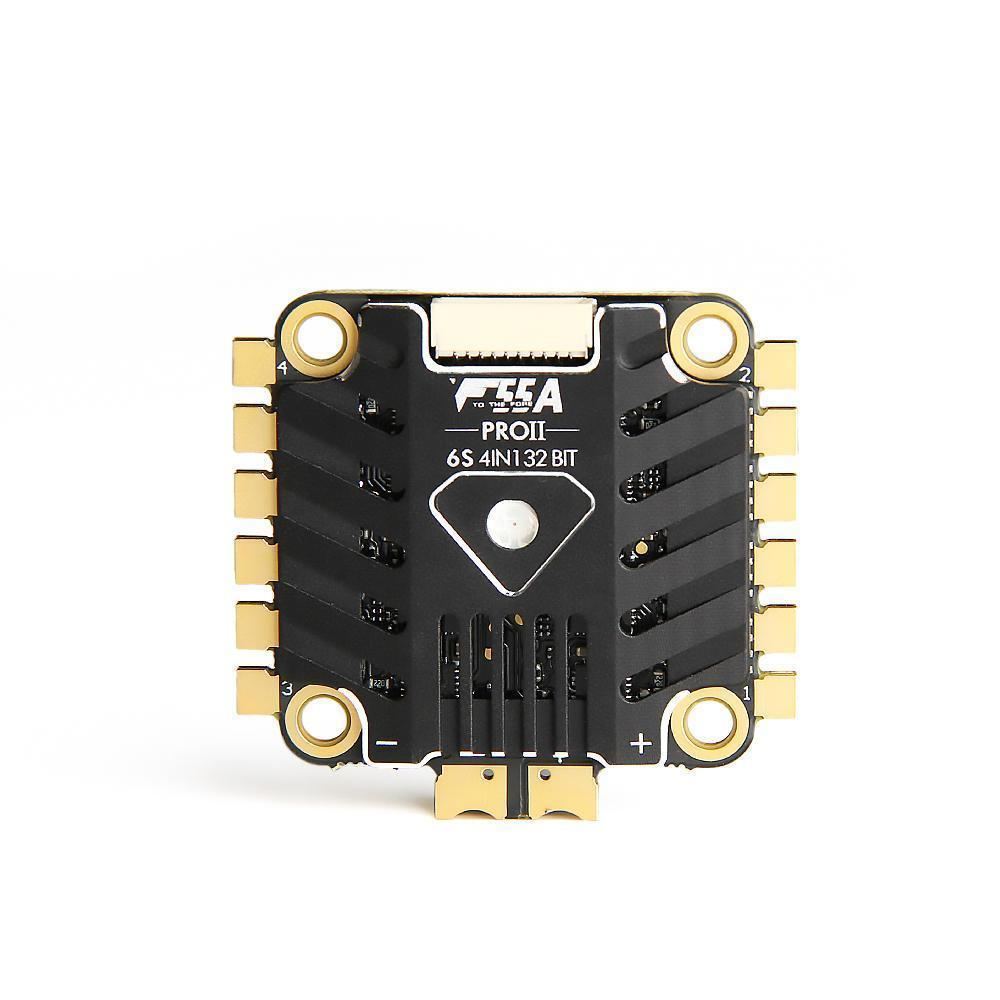

ESC

• Continuous current: 4*55A
• BLHeli_32 32bit
• Burst current: 4*75A
• BEC Output: 10V @2.0A
• Size: 45x41x7.3mm
• Weight: 17.3g (Including Heatsink)
• Support DSHOT150/300/600/1200

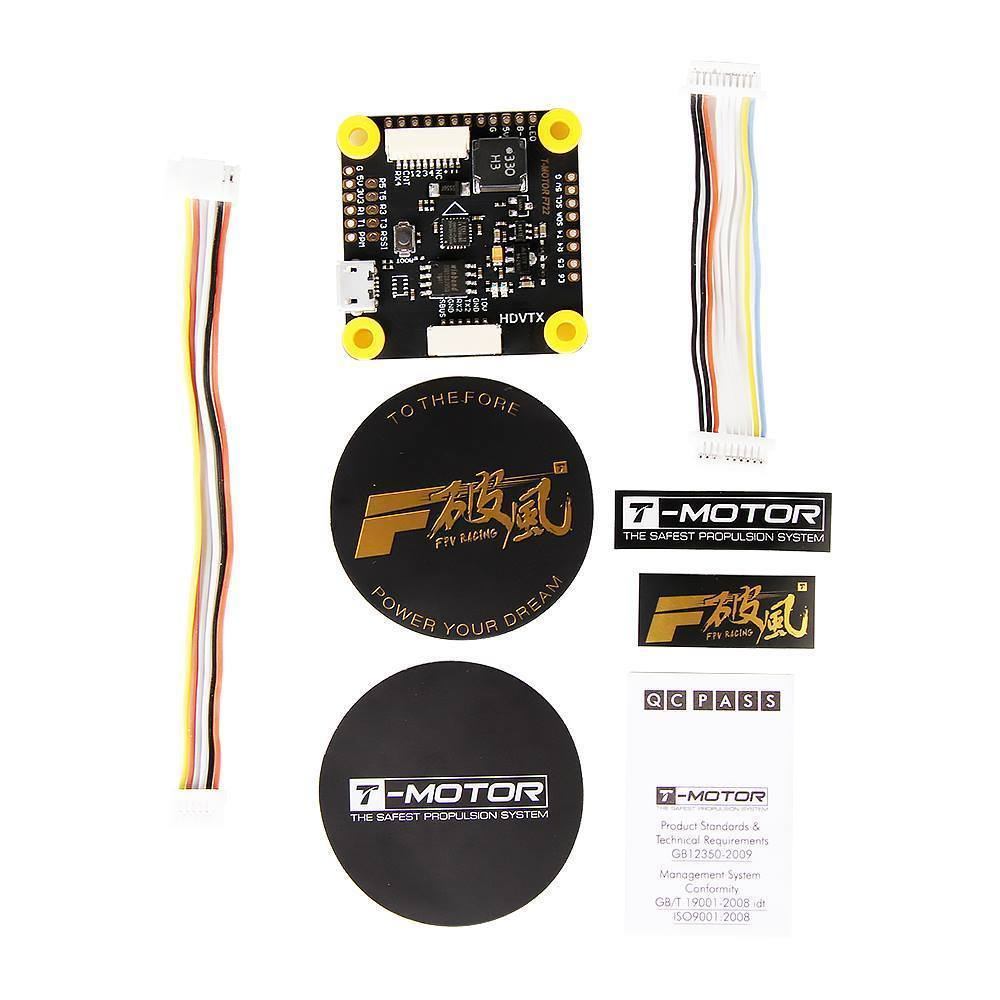

Includes

• 1x T-Motor F7 HD 30x30 Flight Controller for DJI
• 1 x F55A Pro II 4 in 1 Brushless ESC
