Feature —Full 3K imported premium quality and structurally rigid carbon fiber —All Carbon Fiber with chamfered and...
Vendor: TRANSTEC
Availability: In Stock
$104.94
$104.94
Subtotal: $104.94
TransTec Laser S Racing Frame Hybrid

TransTec Laser S Racing Frame Hybrid

$104.94

TransTec Laser S Racing Frame Hybrid

$104.94

Feature

  • —Full 3K imported premium quality and structurally rigid carbon fiber
  • —All Carbon Fiber with chamfered and round edge
  • —All Carbon plates cut with TransTEC Soft Coating Crafts
  • —super durable 6mm arms with quick switch
  • —3mm Hybrid bottom plate with soft mount hole
  • —2.5mm thickness ultra light roof plate
  • —2mm thickness top plate ensures stable arms

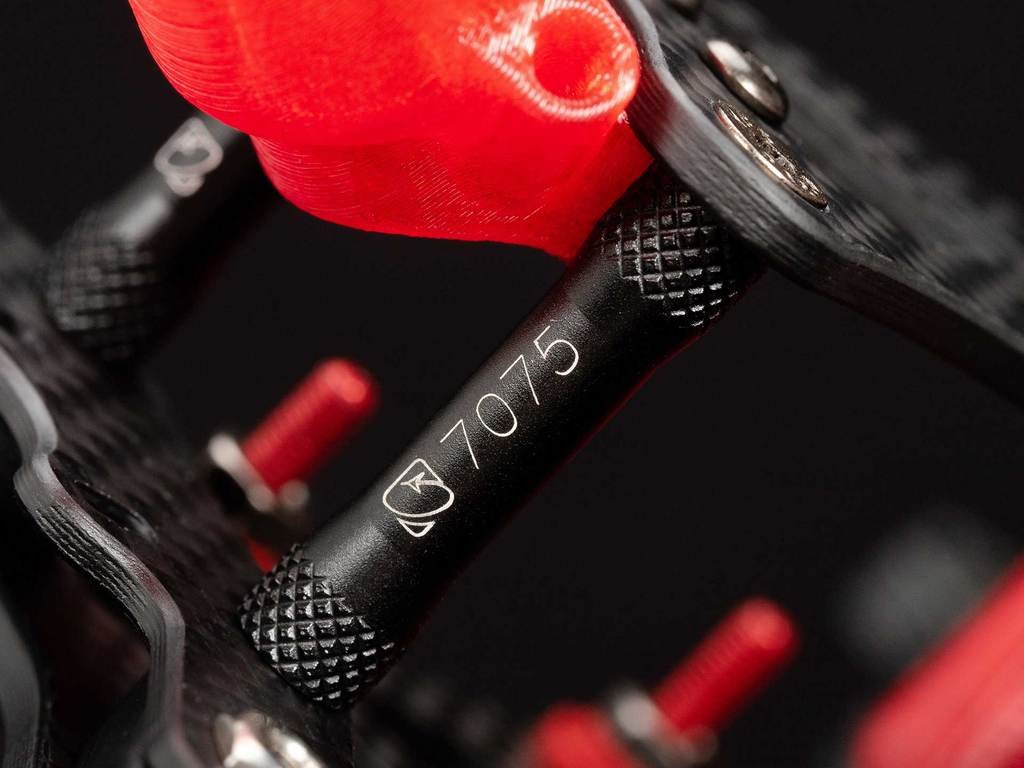

  • —Aerospace application TransTEC 7075Alu standsoff for incredibly solid
  • —High precise 3D print camera holder and new design to protect your cam
  • —Two alternative antenna fixed way for more convenience installation
  • —304 stainless steel custom insert nut for more stable frame
  • —YFS first class 12.9 screws to secure whole frame
  • —20x20mm and 30x30mm FC mount hole
  • —Large internal space possible for 3 board FC stack
  • —Allowing to fit micro camera.
  • —Wheelbase 224mm
  • —TransTEC Damping System , unique design soft rubber ring and custom 7075 limit screws, let the rubber remains same force


Suggestion

  • Battery: 4S-6S Lipo 1000mah - 1800mah
  • Camera: 19mm Micro size
  • FC/ESC: 30.5*30.5 / 20*20
  • Prop : 5inch

Packing list

  • 4 x 6mm removable Arms
  • 1 x 3mm Bottom plate
  • 2 x 2mm Top plates
  • 1 x 2.5mm Roof plate
  • M3x12 * 4
  • M3x16 * 4
  • M2.5x8 * 2
  • M2.5 Metal Nut * 2
  • M3 Metal Nut * 4
  • M3 Insert Nut * 4
  • M3x8 Countersunk screws * 4
  • M3 7075 Limit Red screws * 4
  • TPU camera mount * 1
  • TPU SMA antenna mount * 1
  • TPU lollipop antenna mount * 1
  • Battery strap 2pcs
  • Battery pad 1pcs

Specifications

  • Item: TransTEC laser S 224 frame
  • Wheelbase: 224mm (hybrid)
  • Weight: 82g
  • Body: separate body
  • Plate material: full 3K carbon fiber
  • Arm thickness: 6mm (8mm wide)
  • Bottom plate thickness: 3mm
  • Roof/top plate thickness: 2.5& 2mm
  • Standoff: custom7075 aluminum alloy
  • Screws: 12.9 first class YFS Taiwan screw
  • Free gift: red camera and antenna tpu
  • Feature: Champion Racing Frame
  • Package dim: 19*14*3mm

Package weight: 164g
